OEM 6 COM Industrial PC Fanless Mini PC Qotom-Q330P with Core i3-4005U ( 1.80 GHz, Haswell) ,RS485
Price: 1,780.46
OEM 6 COM Mini PC Qotom-Q330P Celeron Processor 4005U ( 1.80 GHz, Haswell) Industrial PC
Product Description
|
|
|
|
Dimension
|
187×111×50mm
|
|
Weight
|
1.0KG
|
|
Power Consumption
|
TDP 15W
|
|
Onboard CPU
|
Intel Core i3 Processor 4005U (4M Cache, 1.80 GHz up to 3.0GHz,Haswell)
|
|
Integrated graphics
|
Intel HD4400 Graphics
|
|
LAN
|
2 x Intel I211-AT- 10/100/1000 Controller
|
|
|
– Support 1333/1600 MHz DDR3L 1.35V SO-DIMMs, 1 x Memory Slot, Max. Supports up to 8GB Memory
|
|
Hard Disk
|
– Support MSATA SSD
– Support 2.5 Inch SATA HDD
|
|
Wireless
|
300M WiFi (Optional)
|
|
Bluetooth
|
Bluetooth 4.0 + 300M WiFi (Optional)
|
|
|
1 x Power on/off button
1 x HDD LED, Power LEDs
2 x USB 3.0 Ports
2 x USB 2.0 Ports
2 x COM ports
|
|
|
1 x Minipcie port (for MSATA SSD)
1 x Minipcie port (for WIFI/BLUETOOT Module)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA Port
1 x SATA power connector
1 x Automatically boot jumper
1 x VGA header
1 x GPIO header (optional)
1 x SIM Card slot (optional)
|
|
|
1 x DV 12V DC input
2 x HD Video Connectors
2 x Intel RJ-45 Ports
2 x USB 3.0 Ports
1 x Speak Out Connector
1 x Mic In Connector
4 x COM ports
|
|
Operating System
|
Support Windows 7 / Windows 8 / Windows 10 / Linux .etc
|
There are 4 options for this model,You could choose what you want!We usually sendOption 1By default.
|
|
Option 1
|
6 RS232+2 HD Video+ 2 Intel RJ45 Port+4 USB 3.0+ 2 USB 2.0(2 display)
|
|
Option 2
|
5 RS232+1 RS485+2 HD Video+ 2 Intel RJ45 Port+4 USB 3.0+ 2 USB 2.0(2 display)
|
|
Option 3
|
5 RS232+1 VGA+2 HD Video+ 2 Intel RJ45 Port+4 USB 3.0+ 2 USB 2.0.( 3 Display)
|
|
Option 4
|
4 RS232+1 VGA+1 RS485+2 HD Video+ 2 Intel RJ45 Port+4 USB 3.0+ 2 USB 2.0(3 display)
|
Notice:COM2 can be RS485 and COM3 can be VGA Ports.
|
Q4005UG2-P

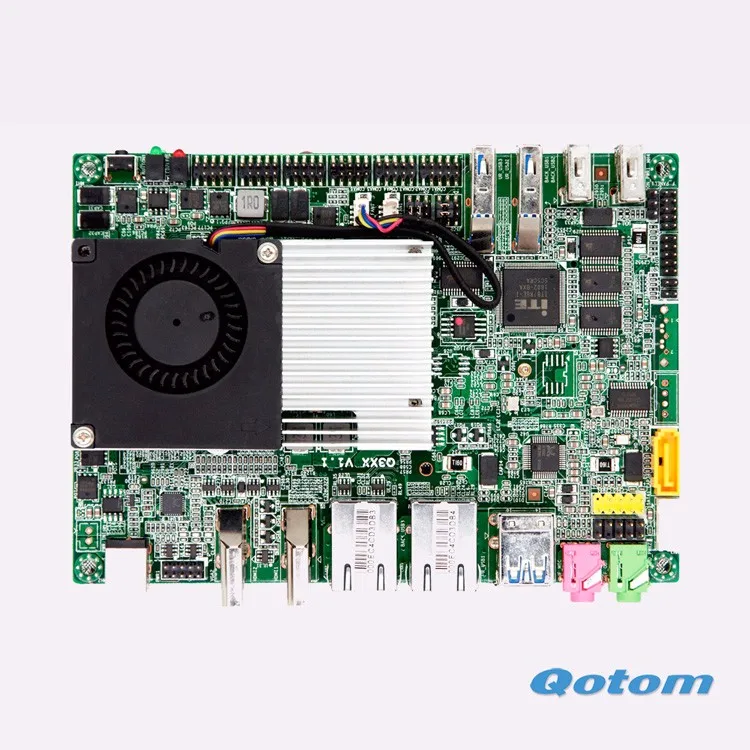

Q330P motherboard inside-Front-side
Q4005UG2-P
Q330P motherboard inside-Back-side
Q330P is fanless mini pc by default,the customer who wants to buy motherboard only,it's cooling fan embedded
